Compact All Terrain Wheel Loader
Powerful Performance: Equipped with a 58kw Weichai turbocharged diesel engine to handle tough jobs.
Impressive Lifting Capacity: Easily lifts and moves materials with a rated load of 2000kg.
Excellent Reach: Features a high dumping height of 3.2 meters for effortless loading into trucks and hoppers.
Superior Maneuverability: Combines four-wheel drive with a tight 3.2-meter minimum turning radius, perfect for confined job sites.
Smooth Operation: A continuously variable transmission with dual high/low speeds ensures optimal control and speed.
Robust Cooling System: A dual-piece hydraulic torque converter oil radiator prevents overheating during intensive use.
Durable Drivetrain: Built with a mid-wheel reduction bridge axle for reliable, long-lasting performance.
Introduction of the Compact All Terrain Wheel Loader
Meet the Compact All-Terrain Wheel Loader, your new essential partner for construction, landscaping, and agricultural projects. This powerful front end wheel loader is engineered for maximum efficiency and versatility in a compact frame. Powered by a robust 58kw Weichai turbocharged engine, it boasts a significant 2000kg load capacity, making it ideal for moving everything from gravel to animal feed. As a highly maneuverable articulating wheel loader, it navigates tight spaces with ease, thanks to its responsive four-wheel drive and an exceptionally tight turning radius. With a high dumping clearance of 3.2 meters and a smooth, continuously variable transmission, this compact wheel loader delivers the performance and reliability you need to boost productivity on any job site.
Product Details
Technical Specifications for Wheeled Loader LY938
| Parameter | Value |
|---|---|
| Diesel Engine | Weichai 490 Turbocharged Engine |
| Rated Power | 58kW |
| Rated Load | 2000kg |
| Bucket Width | 1.9m |
| Rated Bucket Capacity | 0.8m³ |
| Wheel Base | 2400mm |
| Tire Model | 20.5-16 |
| Dumping Height | 3.2m |
| Flat Lift Height | 3.8m |
| Unloading Distance | 1m |
| Minimum Turning Radius | 3.2m |
| Driving Method | Four-wheel drive |
| Drive Axle Model | Mid wheel reduction bridge |
| Hydraulic Pump Model | 50 |
| Maximum Hydraulic System Pressure | 16-20Mpa |
| Maximum Walking Speed | 35km/h |
| Transmission System | Continuously variable speed dual high and low speed |
| Cooling System | Dual piece hydraulic torque converter oil radiator |
| Overall Weight | 3.3T |
| Vehicle Size | 5.5m x 1.8m x 2.75m |
Optional Attachment
FAQ
What is the rated load capacity of the LY-938 Wheel Loader?
The LY-938 has a rated load capacity of 2000kg, making it suitable for heavy material handling tasks.
What type of engine does the LY-938 use?
The LY-938 is powered by a Weichai 490 turbocharged diesel engine, providing 58kW of rated power for optimal performance.
What is the maximum lifting height of the LY-938?
The loader has a dumping height of 3.2m and a flat lift height of 3.8m, which is ideal for unloading and lifting tasks.
Can the LY-938 be used in small spaces?
Yes, with a minimum turning radius of 3.2m and a compact design, the LY-938 is perfect for use in tight spaces.
What is the maximum walking speed of the LY-938?
The maximum walking speed of the LY-938 is 35 kilometers per hour, ensuring fast operation.

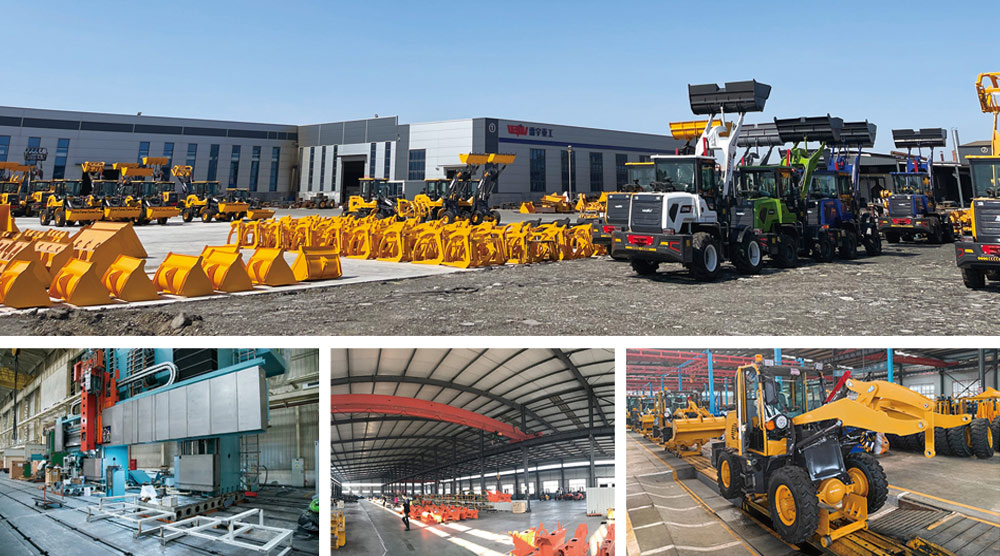

Company Profile
Shandong Leiyu Heavy Industry Machinery Co., Ltd. is a modern technology enterprise that integrates scientific research and development, manufacturing, sales, and service. It is a well-known brand in China, with products certified by European CE and ISO international quality standards. The company produces and sells 80,000 units annually. The "Lei Yu" series includes excavators, loaders, backhoe loaders, off-road forklifts, tricycles, four-wheel trucks, and fully automatic loading and mixing trucks. The company's products are designed and developed with reasonable engineering, low energy consumption, high efficiency, and ease of operation and maintenance, ensuring they meet diverse customer needs. Shandong Leiyu Heavy Industry Machinery Co., Ltd. employs over 600 individuals and operates on 350,000 square meters of premises. It boasts six modern production workshops with an annual output of 80,000 vehicles, equipped with over 200 state-of-the-art robot welding, laser cutting, and machining equipment.The company holds prestigious honors such as "Famous Brand in China," "High Quality Brand in Shandong Province," and "Bestselling Brand in China." The company's products are exported to multiple countries and regions, including Europe, Asia, and Africa, and are sold well worldwide. The company is highly trusted by consumers. |
|
